Medium Frequency Induction Melting Furnace

Medium Frequency Induction Melting Furnace

inquiry
  • Specifications
    Model MF-15 MF-25 MF-35 MF-45 MF-70 MF-90 MF-110 MF-160 MF-240 MF-300
    Max Input power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 160KW 240KW 300KW
    Max Input current 23A 36A 51A 68A 105A 135A 170A 240A 360A 460A
    Output current 3-22A 5-45A 10-70A 15-95A 20-130A 25-170A 30-200A 30-320A 40-430A 50-550A
    Output voltage 70-550A
    Input voltage 3phase 380V 50 or 60HZ or according customer’s requirement.
    Frequency 1KHZ – 20KHZ according customer’s workpiece require.
    Duty cycle 100% 24hours continuous working
    Generator net weight 26 28 35 47 75 82 95 125 240 290
    Generator size LxWx H cm 47x27x45 52x27x45 65x35x55 75x40x87 82x50x87 80x56x180 80x56x180
    Timer Heating time: 1-99 seconds retaining time: 1-99 seconds
    Front panel LCD, display frequency, power, time etc.
    Whole systems water flow ≥0.2Mpa ≥6L/Min ≥0.3Mpa ≥10L/Min ≥0.3Mpa ≥20L/Min ≥0.3Mpa ≥30L/Min
    Power supply water flow ≥0.2Mpa ≥3L/Min ≥0.2Mpa ≥4L/Min ≥0.2Mpa ≥6L/Min ≥0.2Mpa ≥15L/Min
    Water way 1 water inlet, 1 water outlet 1 water inlet, 3 water outlet
    Max water temp. ≤40℃
    AuxiliaryFunction 1.model MF-XXA has timer function, heating time and retaining time can be preset and controlled independently from 0.1-99.9second. 2.model MF-XXB is used together with transformer.

    Main models and melting abilities

    The table below lists the main models and recommended maximum melting abilities. First time About 50 to 60 minutes are needed to finish one melting process at cool status of the induction furnace, at hot status of the induction furnace, only 20 to 30 minutes are needed.

    Model Max input power Maximum melting capacity
    Iron, steel,stainless steel Brass, copper, silver, gold, etc. Aluminium
    MF-15 induction melting furnace 15KW 3KG 10KG 3KG
    MF-25 induction melting furnace 25KW 5KG 20KG 5KG
    MF-35 induction melting furnace 35KW 10KG 30KG 10KG
    MF-45 induction melting furnace 45KW 18KG 50KG 18KG
    MF-70 induction melting furnace 70KW 25KG 100KG 25KG
    MF-90 induction melting furnace 90KW 40KG 120KG 40KG
    MF-110 induction melting furnace 110KW 50KG 150KG 50KG
    MF-160 induction melting furnace 160KW 100KG 250KG 100KG
    MF-240 induction melting furnace 240KW 150KG 400KG 150KG
    MF-300 induction melting furnace 300KW 200KG 500KG 200KG
  • Description

    Medium frequency induction melting furnace are mainly used for the melting of gold, silver, platinum, copper, brass, bronze, zinc, steel, stainless steel, iron, aluminum and alloy materials, etc. melting capacity can be from 0.1kg to 500kg.

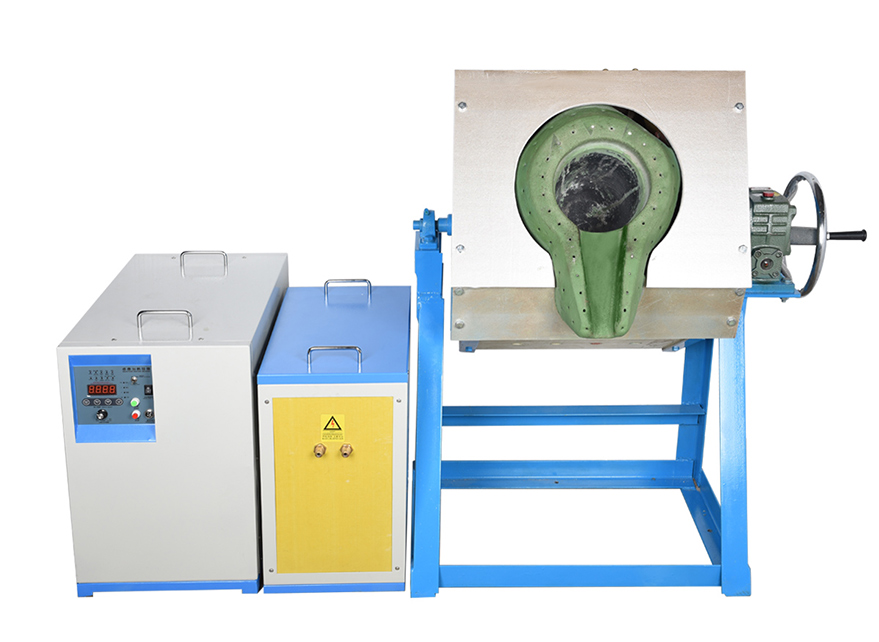

    The composing of the Medium frequency induction melting furnace

    Medium Frequency induction heating generator.

    Compensating capacitor.

    Melting furnace.

    Infrared temperature sensor, temperature controller and water cooling system can also optional.

    Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.

    According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.

    Main Features of MF induction melting furnace

    Medium frequency induction melting furnace can be used for the melting of steel, stainless steel, iron, brass, copper, aluminum, gold, silver, platinum , zinc, metal alloys and so on.

    Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.

    Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.

    Compared with SCR medium frequency induction furnace, it can save energy at least 20% and up.

    Small and light weight, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.

    24hours non-stop melting ability.

    It’s easy to change melting furnace for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.
