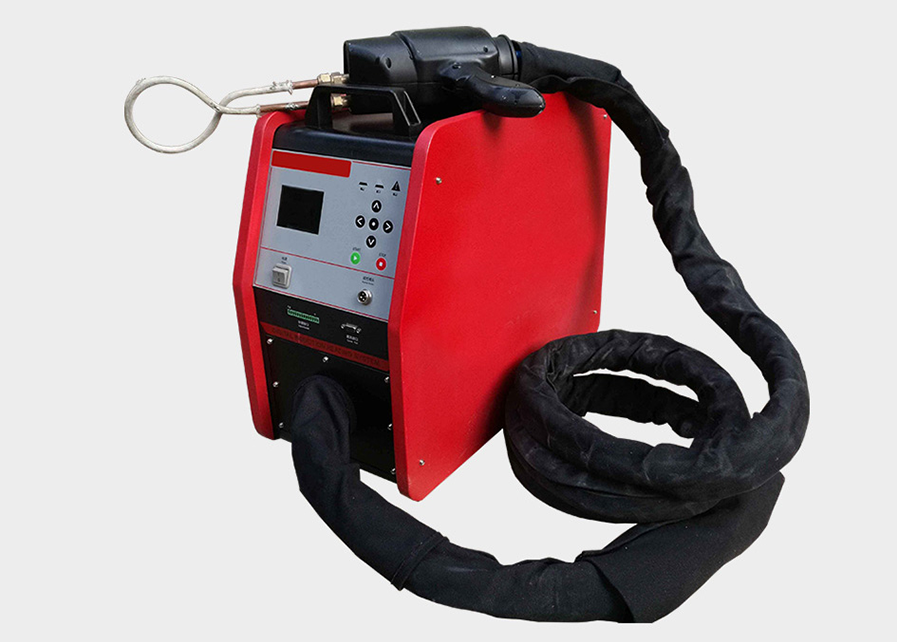

handheld induction heaters

handheld induction heaters

inquiry
  • Specifications

    Model

    H-16

    H-25

    H-40

    Control Method

    Digital embedded control software

    Working Mode

    Manual mode, automatic mode, and temperature control mode.

    Current Heating Setting

    5 sections (can be extended to 32)

    Input voltage

    3phase 380V 50/60Hz

    Rated current

    19A

    29A

    40A

    Maximum current

    29A

    40A

    64A

    Rated power output

    12KW

    18KW

    25KW

    Max output power

    16KW

    25KW

    40KW

    Frequency

    10-60KHz

    Power range

    2-100%

    2-100%

    2-100%

    Cooling water flow

    12.5L/min

    Max inlet water temperature

    35°C

    Cooling water PH value

    7.0-9.0

    Generator dimension

    280x525x600mm

    280x525x600mm

    280x525x600mm

    Generator weight

    28kg

    37kg

    48kg

    Transformer dimension

    120x280x240mm

    120x280x240mm

    120x280x240mm

    Transformer weight

    18kg

    29kg

    29kg


    Control Method: Digital embedded control software.
    Main Chip: ARM STM32.
    Chip Speed: 72MHz
    Working Mode: Manual mode, automatic mode, and temperature control mode.
    Current Heating Setting: 5 sections (can be extended to 32).
    Number of Working Parameter Storage: 10 pcs/mode.
    Display Screen: 3.5 inches True Color display screen, resolution ratio 320*240.
    Communication & Start-up Interface: DB-9 and 4 cores air plug.
    Bus Access: RS485 (recommended), Profibus (optional), CANbus (optional).
    Trial Function Time: 200 hours. (While the trial function enables, the device will be locked down when it reaches the setting time.).

  • Main Characteristics

    1. Digital Signal Processing relize the heating curve programming. Heating time can be accurate to 0.1 second. Implement a variety of operating parameters. Can store equipment operation parameters.
    2. Quick and easy to use, accurate and repeatable and consistent heat transfer performance increase productitity.
    3. No flame, no gas, and no heat, make the operator more comfortable.
    4. Portable mobility and applications of multifunctional heating allows relization of all kinds of tasks.
    5. Efficient and precise heating process means getting things done at a time.
    6. Adopt digital control software, IGBT module and Inverting technologies of Fourth generation, Higher reliability and lower maintenance cost.
    7. 100% Duty cycle, continuous working is allowed at maximum power output.
    8. Working Model: Manual, Auto, and temperature control.
    9. Working condition display: time, current, frequency, current curve.
    10. Alarm interface: over current, over voltage, water lack, phase false, over heat and so on.
    11. Heating head’s leading wire is 3-5 meters long, suitable for welding, heat the work piece that normal machine cannot reach to it.

  • Typical Applications

    Air conditioning, refrigerator freezer, refrigeration valve pipe pieces, solar accessories, compressor, compressor parts, washing machine, tube and pipe connections with the casing connection, pipe and valve connection, auto parts in the evaporator and the compressor connection, etc.
