Specifications:

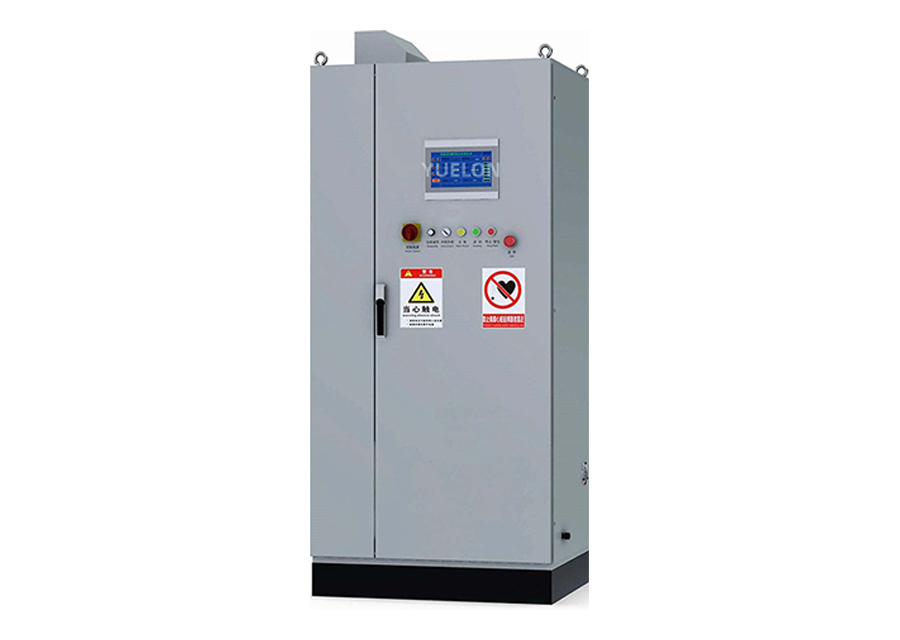

DSP + CPLD All Digital Control Ultrahigh Frequency 200-400kHz Induction Heaters
Specifications: DSP + CPLD all digital control Ultrahigh Frequency 200-400kHz Induction Heaters. High efficiency, stable output, advanced intelligent protection and flexible control interfaces make these heaters ideal for precision applications.
Model UF400K-60DS UF400K-80DS UF400K-100DS UF400K-160DS UF400K-200DS Power 60KW 80KW 100KW 160KW 200KW Output Frequency 200–400KHz Input Voltage 3 phase 380V 50/60Hz Power Adjustment Range 10–100% adjustable Power Control Accuracy ±1% Anti-Voltage Fluctuation Grid voltage ±10%, output power fluctuation ±1% Power Factor >0.93 Operating Mode Arbitrary selection of constant current/constant power Control System DSP + CPLD Control Method Switchable internal and remote control Operation Interface Man-machine interface + button Communication Interface Ethernet port / RS485 Working Temperature 0–40°C Cooling Method Forced water cooling + plate heat exchange Water Pressure 0.1–0.3Mpa Inverter Bridge Components SiC -
Main Characteristics:
DSP + CPLD all digital control
DPLL all digital frequency tracking
IGBT all soft switching inverting
CPLD all digital rectifier control
All-fiber digital signal transmission
All-digital intelligent protection
Fully enclosed non-convection cabinet
Design of water and electricity separation of the whole machine
Modular inverting structure design
Intelligent algorithm: unique program algorithm and special filter design
Multiple application, automatic parameter matching
Optional energy monitoring system
High output power stability
Intelligent fault identification
Various communication interfaces and protocols
Anti-interference design of the whole inverter
-
Main Characteristics:
DSP + CPLD all digital control
DPLL all digital frequency tracking
IGBT all soft switching inverting
CPLD all digital rectifier control
All-fiber digital signal transmission
All-digital intelligent protection
Fully enclosed non-convection cabinet
Design of water and electricity separation of the whole machine
Modular inverting structure design
Intelligent algorithm: unique program algorithm and special filter design
Multiple application, automatic parameter matching
Optional energy monitoring system
High output power stability
Intelligent fault identification
Various communication interfaces and protocols
Anti-interference design of the whole inverter
-
