GGP50-0.45-H

GGP50-0.45-H

GGP50-0.45-H

GGP50-0.45-H

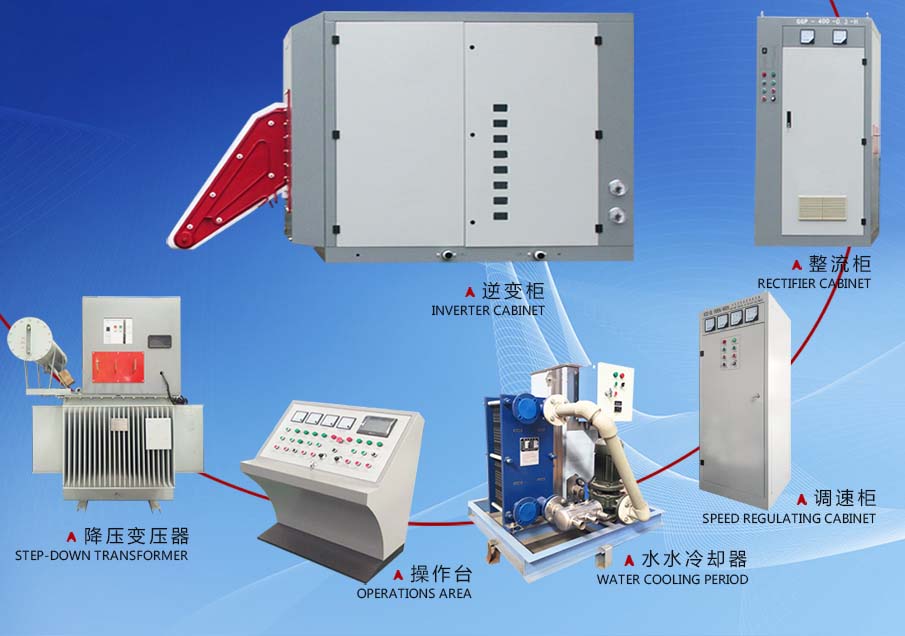

Solid State High frequency Tube Welder

Solid State High frequency Tube Welder

Model	GGP50-0.45-H	GGP100-0.45-H	GGP150-0.4-H	GGP200-0.35-H	GGP250-0.3-H	GGP300-0.3-H	GGP400-0.25-H	GGP500-0.2-H	GGP600-0.2-H	GGP700-0.2-H	GGP800-0.2-H
Tube OD	8-14mm	10-35mm	16-60mm	35-76mm	45-89mm	50-114mm	89-165mm	114-219mm	140-273mm	140-406mm	165-508mm
Tube wall thickness	0.2-1.0mm	0.5-1.5mm	0.8-2.0mm	1.0-3.0mm	1.5-4.0mm	2.0-5.0mm	2.0-8.0mm	4.0-10.0mm	4.0-12.0mm	6.0-14.0mm	6.0-16.0mm
Welding model	Induction welding	Induction welding	Induction welding	Induction welding	Induction welding	Induction/contact welding	Induction/contact welding	Induction/contact welding	Induction/contact welding	Induction/contact welding	Induction/contact welding
Welding speed(m/min)	60-100m	60-100m	60-100m	60-100m	60-100m	25-60m	20-30m	10-20m	10-20m	10-20m	10-20m
Related output power	50KW	100KW	150KW	200KW	250KW	300KW	400KW	500KW	600KW	700KW	800KW
Related DC current	250V	250V	240V	240V	240V	240V	240V	240V	240V	240V	240V
Related DC voltage	250A	500A	750A	1000A	1250A	1500A	2000A	2500A	3000A	3500A	4000A
Related frequency	450KHz	450KHz	400KHz	350KHz	300KHz	300KHz	250KHz	200KHz	200KHz	200KHz	200KHz
Efficiency	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%	≥85%
Output HF power	≥50KW	≥100KW	≥150KW	≥200KW	≥250KW	≥300KW	≥400KW	≥500KW	≥600KW	≥700KW	≥800KW
AC input	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz	3P380V 50/60Hz
Power distribution	>65KVA	>150KVA	>200KVA	>250KVA	>300KVA	>360KVA	>500KVA	>600KVA	>750KVA	>850KVA	>1000KVA
Power factor	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85	≥0.85
Power supply cable	Plastic copper wire per phase≥50mm2 Ground wire ≥20mm2	Plastic copper wire per phase≥95mm2 Ground wire ≥50mm2	Plastic copper wire per phase≥150mm2 Ground wire ≥75mm2	Plastic copper wire per phase≥200mm2 Ground wire ≥95mm2	Plastic copper wire per phase≥250mm2 Ground wire ≥120mm2	Plastic copper wire per phase≥300mm2 Ground wire ≥150mm2	Plastic copper wire per phase≥400mm2 Ground wire ≥200mm2	Plastic copper wire per phase≥500mm2 Ground wire ≥250mm2	Plastic copper wire per phase≥600mm2 Ground wire ≥300mm2	Plastic copper wire per phase≥700mm2 Ground wire ≥350mm2	Plastic copper wire per phase≥800mm2 Ground wire ≥400mm2
