Specifications
Model
HF-15M
HF-25M
HF-40M
Max.oscillating power
15KW
25KW
40KW
Max input power
7KW
25KW
25KW
Max input current
32A (40A 1phase circuit breaker required)
23A (25A 3 phase circuit breaker required)
38A (40 A 3 phase circuit breaker required)
Heating current
200-600A
200-1000A
10-52A
Frequency
30-80KHz
30-80KHz
30-80KHz
Voltage
1phase 220V 50/60Hz
3phase 380V 50/60Hz
3Phase 380V 50/60Hz
Duty cycle
80%
80%
100%
Cooling water request
≥ 0.2 Mpa ≥6L/min
≥ 0.2 Mpa ≥6L/min
≥ 0.2 Mpa ≥6L/min
Water temperature
<40°C
<40°C
<40°C
Size
460 x 520 x 560mm
490 x 490 x 880mm
490 x 490 x 880mm
weight
56kg
65kg
72kg
Shipping size
560 x 620 x 860mm
590 x 590 x 1180mm
590 x 590 x 1180mm
Shipping weight
68kg
85kg
95kg
Main models and melting abilities:
The table below lists the main models and recommended maximum melting abilities. First time About 30 minutes are needed to finish one melting process at cool status of the induction furnace, at hot status of the induction furnace, only about 3-10 minutes are needed.
Model
Max power
Maximum melting capacity
Iron, steel,
stainless steelBrass, copper,
silver, gold, etc.Aluminium
HF-15M induction melting furnace
15KW
0.4 kg
2 kg
1 kg
HF-25M induction melting furnace
25KW
0.6 kg
5 kg
2 kg
HF-40M induction melting furnace
40KW
0.8 kg
10 kg
2.5 kg
-
Main Characteristics
Compact Induction Melting Furnace with PID temp controller (1-10kg)
High frequency induction heaters are the simplest design and structure. With affordable price and less maintenance, it is very popular used in jewelry casting field. Compact induction melting furnace with PID temperature controller, designed to operate between 30-80KHZ, they are great for previous metals melting and casting at an ultra fast speed (3-10minutes), such as gold, silver, copper, alloy melting.
Features
1.Advanced melting equipment for gold, silver, copper and other alloy metal melting.
2.Apply IGBT and MOSFET technology, big output power, stable high efficiency.
3.With various protection as over voltage protection, over and current protection, insufficient water protection,over heating protection, safe and reliable.
4.Digital PID temperature controller built into the unit which will prevent you from vaporizing the gold, keeping more money in your pocket.

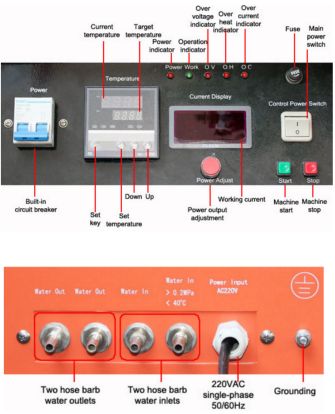

5.Adjustable melting temperature, precise control with digital temperature and current display.
6.Very fast melting speed, normally in 3-10minutes.
7.Quick temp rising, electricity saving, low melting cost with high efficiency.
8.Cabinet casing, compact design with small size and low weight, easy operation, simple and convenient maintenance.
9.Easy of use: just plug in the power and connect the water cooling system, our simple instruction allows you to use the heater in several minutes.
10.Graphite crucible with jacket included for immediate use.
11.Sample melting test available anytime in our factory.
-
