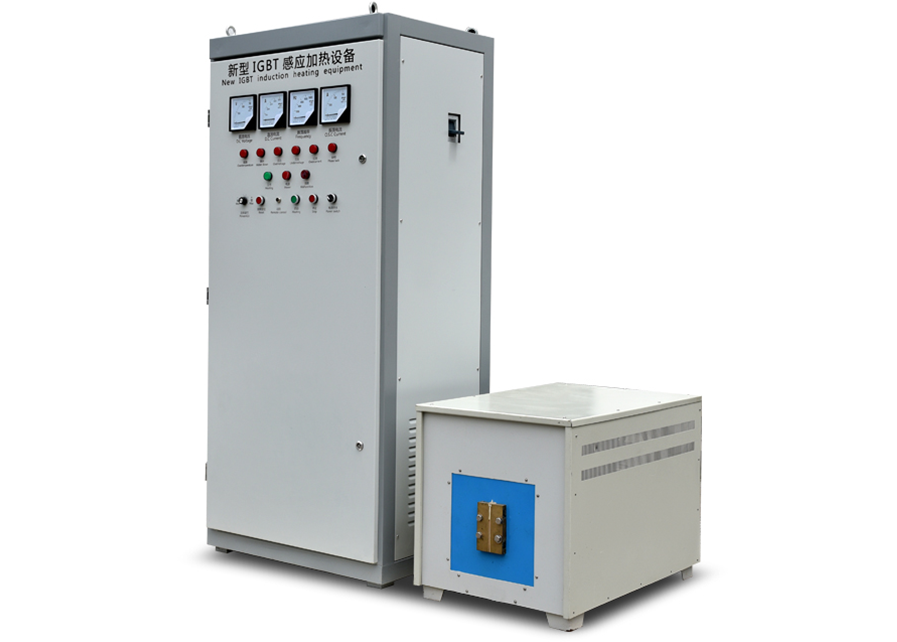

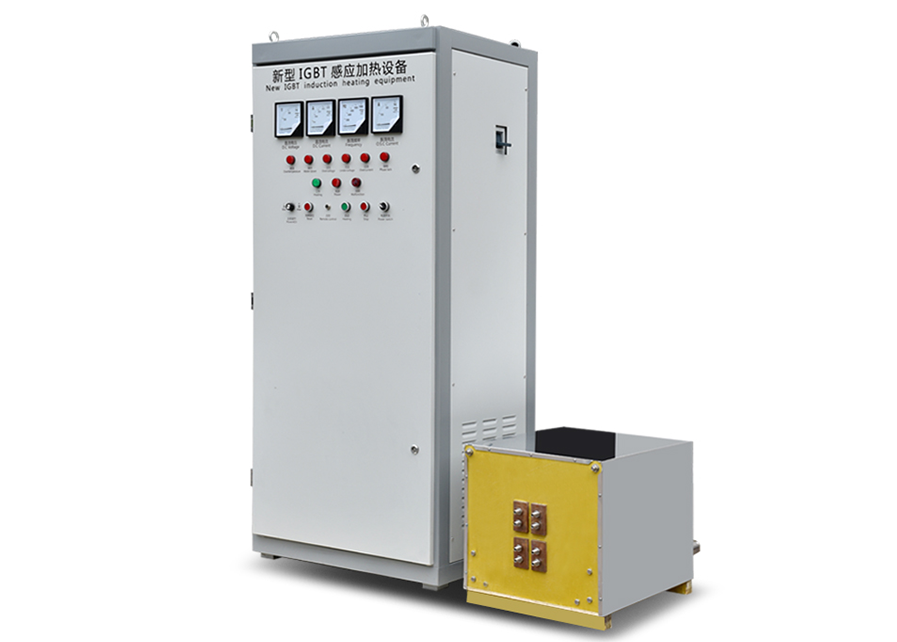

MFS-100

Medium Frequency Series

inquiry
  • Specifications

    Model

    MFS-100

    Max output power

    100KW

    Max. input current

    160 A

    Woring frequency

    0.5-10KHz

    Working voltage

    342-430V

    Input voltage

    3phase 380 V, 50/60Hz (or customized as your request)

    Duty cycle

    100%

    Water pressure

    ≥ 0.2 Mpa

    Water flow (m³/h)

    10-20 m³/h

    Water temperature

    <40°C

    Size of generator (L x W x H)

    800 x 650 x 1800mm

    Weight of generator

    175kg

    Packing size

    950 x 800 x 2000mm

    Packing weight

    260kg

  • Main characteristics

    Voltage feedback design and adopt IGBT based LC series resonance circuit .

    IGBT inversion technology ,high energy conversion over 97.5% .

    Energy saving 30%up compared with SCR technology. In series resonance circuit, induction coil with high voltage and low current, so energy loss is very low. Soft switch technology applied then switch loss is very low.

    It can be started up 100% under any condition.

    100% duty cycle , 24hours continuous working ability at maximum power.

    Less harmonic current and high power factor. Power factor always remaining 0.95 above during machine running.

    The frequency tracking automatically technology enables power factor to remaining high level throughout heating process.

    Good reliability, IGBT is a self turn-off transistor that ensures inversion with success and takes protection instantly; IGBT used from infineon company, world-renowned manufacturer.

    Easy to operate and maintain, IGBT MFS induction generator is easy to prevent and maintain due to its simple circuit structure. It has perfect protection.

    Options:

    A range of heating furnace, customized different type of heating furnace according customer’s requires.

    Infrared sensor and temperature control system.

    CNC or PLC controlled mechanical fixture for hardening application.

    Water cooling system.

    Pneumatic rod feeder.

    Customized whole automatic heating system.

  • Main Applications

    Hot Forging/forming for medium and large workpiece

    Surface hardening for large part

    Preheating of pipe/tube bending

    Annealing of pipe welding

    Melting of copper, and so on

    Shrink-fit of sleeve of roller
