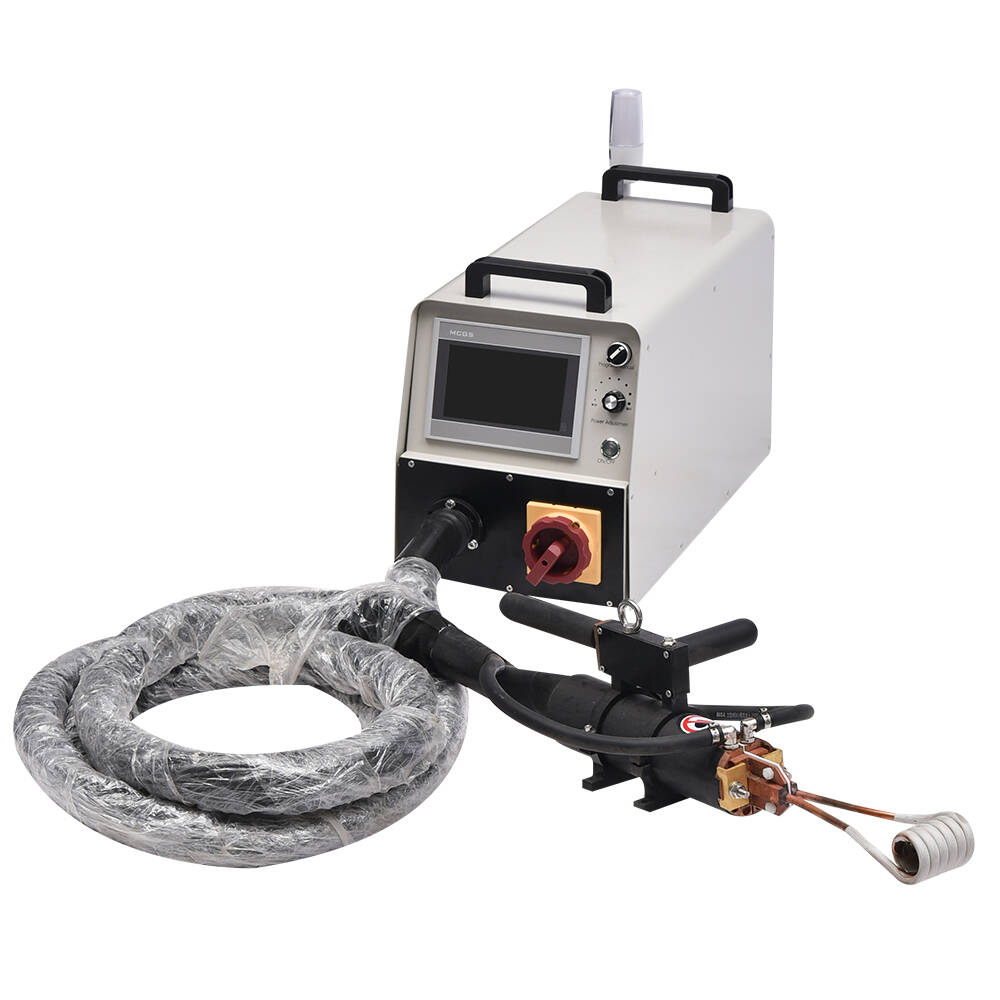

Mobile Induction Heaters 40KW
Mobile Induction Heaters 40KW
| Model | HH-SF-40DS |
| Max ouput power | 40KW |
| Frequency | 10-40KHZ |
| Max input current | 60A |
| Input voltage | 3phase 380V 50/60HZ |
| Working voltage | 342-430v |
| Duty cycle | 100% |
| Cooling water desire | >0.45Mpa 33L/min |
| Max water temperature | 40℃ |
| Generator size | 600*300*350 |
| Generator weight： | 37Kg |
| Handheld transformer weight | 6.5kg |
| Flexible cable length | 6m |
| Packing size | 705*675*765 |
| Packing weight： | 79KG |
