Superaudio Frequency Series

  • Specifications

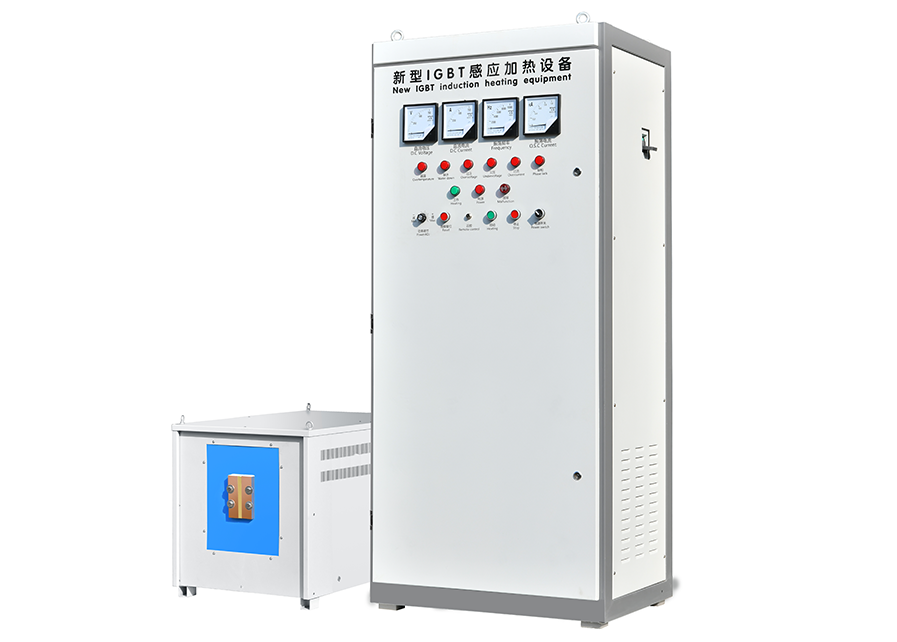

    Model SF-300AB
    Max output power 300KW
    Max. input current 455 A
    Working voltage 342-430V
    Working frequency 8-30KHz
    Input voltage 3phase 380 V, 50/60Hz (or customized as your request)
    Duty cycle 100%
    Efficiency 100%
    Water pressure ≥ 0.2 Mpa
    Water flow ≥100L/min
    Water temperature <40°C
    Size of generator (L x W x H) 830 x 720 x 1860mm
    Size of transformer (L x W x H) 900 x 550 x 620mm
    Weight of generator 198kg
    Weight of transformer 126kg
    Packing size of generator 1000 x 800 x 2000mm
    Packing size of transformer 1180 x 650 x 1000mm
    Packing weight of generator 292kg
    Packing weight of transformer 175kg
  • Description

    IGBT inversion technology based LC series circuit .

    Phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.

    Diode rectifier cause high power factor more than 0.95.

    Working continuously with 100% duty cycle, power can be instantly turned on or shut off.

    Perfect protective circuit and cooling system design, which ensure the good reliability of machine.

    Low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.

    Environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.

    Operating and installation easily and safely

    Can substitute traditional heating methods.

  • Application

    Rod forging, rod hardening.

    Bolt,nut forging

    Heat treatment of shaft, gear, pin, etc.


    Steel wire and pipe annealing

    Pipe bending.
