Ultrahigh Frequency Series

  • Specifications

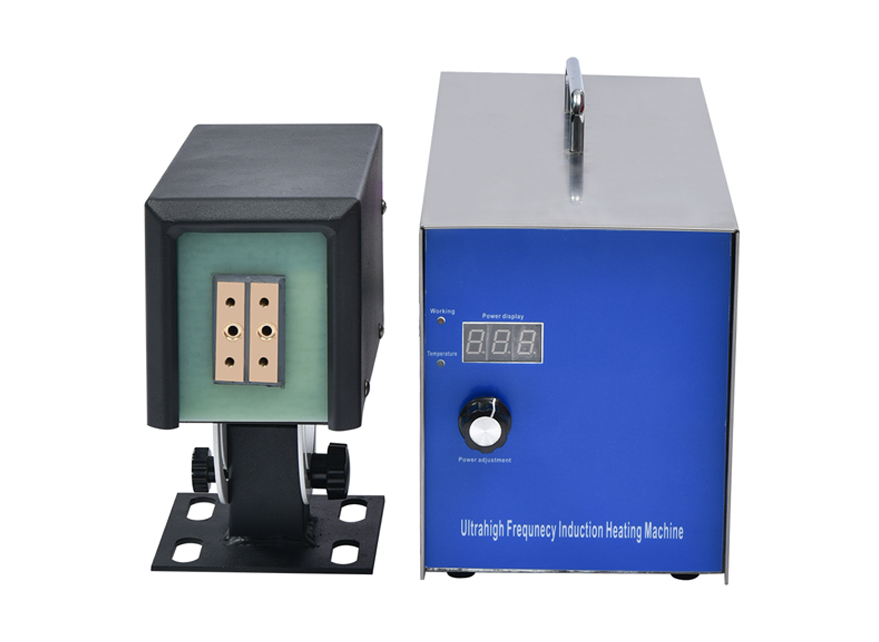

    Model UF-05AB
    Max.oscillating power 5KW
    Max. input current 15A
    Heating/ retaining current 0.2-25A
    Working frequency 0.5-1.1MHz
    Input voltage 220 V single-phase, 50/60Hz
    Duty cycle 80%
    Water pressure ≥ 0.2 Mpa
    Water flow ≥6L/min
    Water temperature <35°C
    Coil pipe size OD 2.0MM ID 1.2mm
    Product size Generator: 280 x 288 x 145mm
    Heating head:120 x 60 x 105mm
    N.W. Generator: 18 kg
    Heating head: 3kg
    Packing size 510 x 380 x 240mm
    Packing weight 35kg
  • Main Characteristics

    UF-05AB Ultrahigh frequency induction heating equipment has such features as high frequency (the minimum heated welding diameter is φ0.1mm), small size, light weight, low failure rate and conservation of energy (it can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating equipments). Furthermore, it can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot. It is widely applied to the welding of couplers and inserts used in metal glass manufacturing as well as electric appliance and electronic industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles and art wares.

  • Main Applications

    Welding of big and small gears of hard alloy saw blade;

    Welding and annealing of spectacle frame and fittings;

    Welding of jewelleries, clock and watch;

    Electric industry (tin and silver soldering of fine wire, various electronic elements);

    Toy industry (tempering for wind spring and thin metal sheet)

    Welding of cutting tools as well as tempering for paper cutter and shoe knife blade;

    Electromechanical industry (silver and braze welding of fine metal joints as well as quench tempering for mini motor shaft);

    Wire material industry (annealing of wire material and sheet band);
