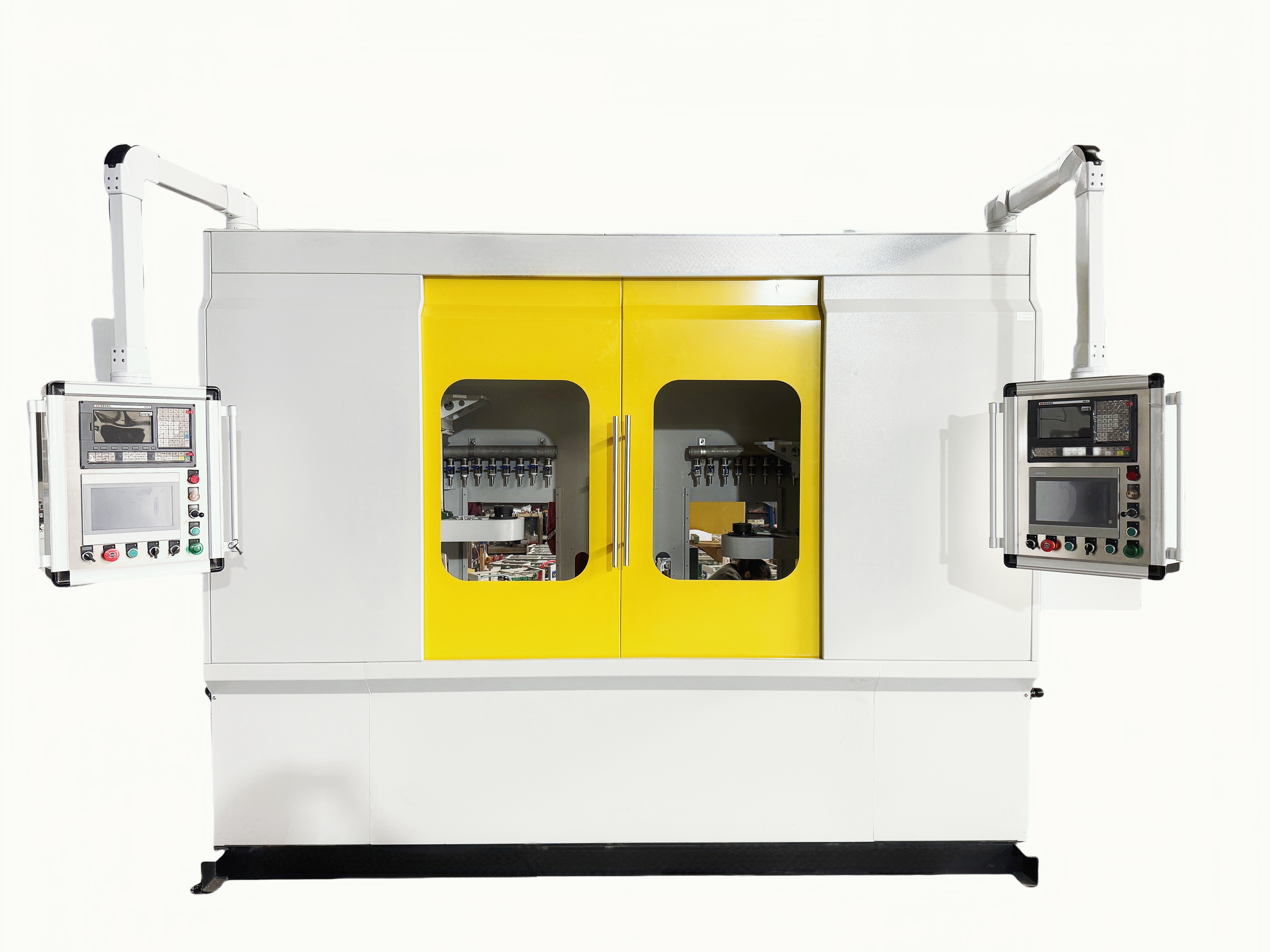

Closed type double station indution hardening machine
Closed type double station indution hardening machine View This Product
ball screw Induction heat treating system
ball screw Induction heat treating system View This Product

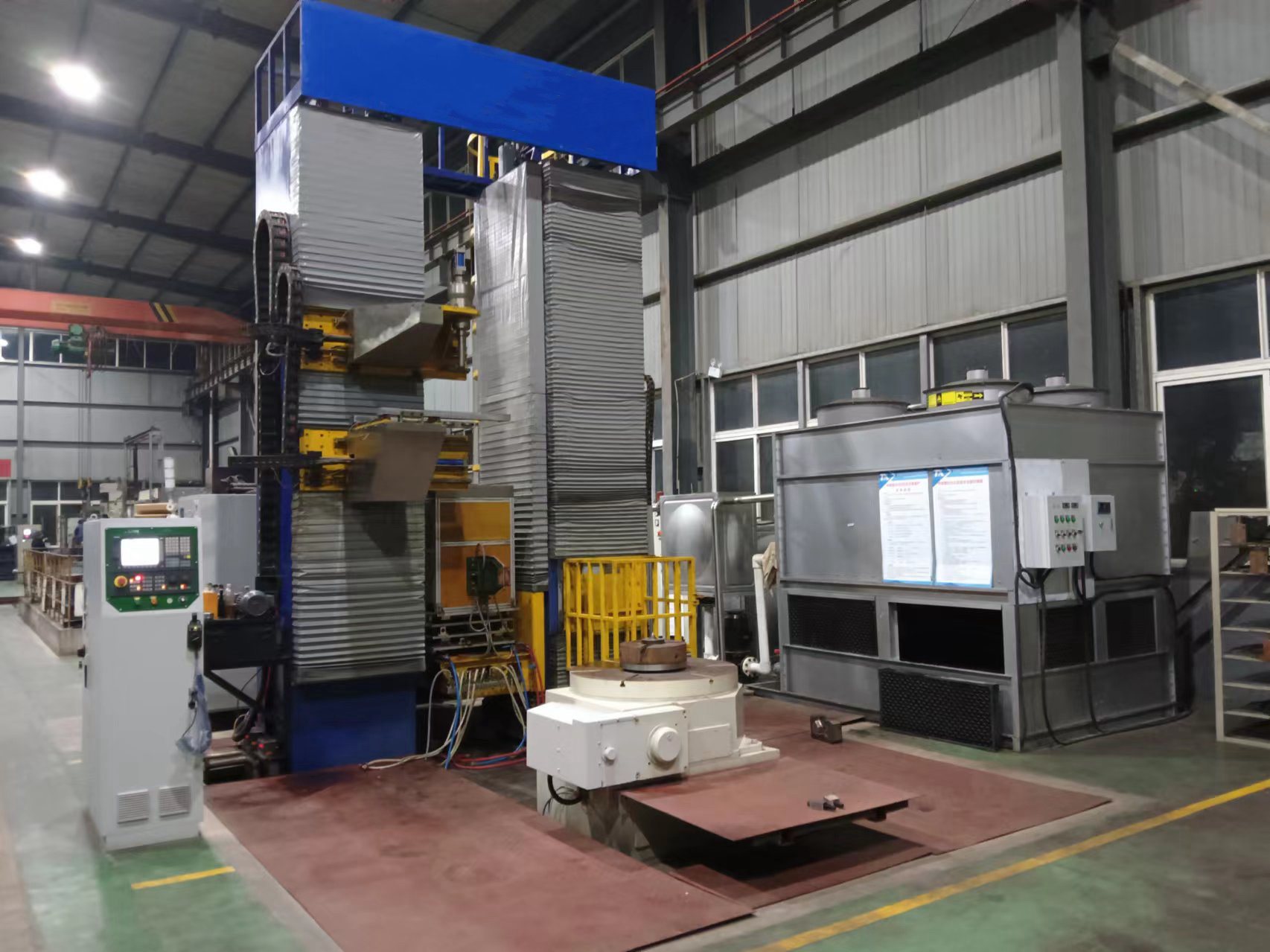

heavy duty induction heat treatment system
heavy duty induction heat treatment system View This Product

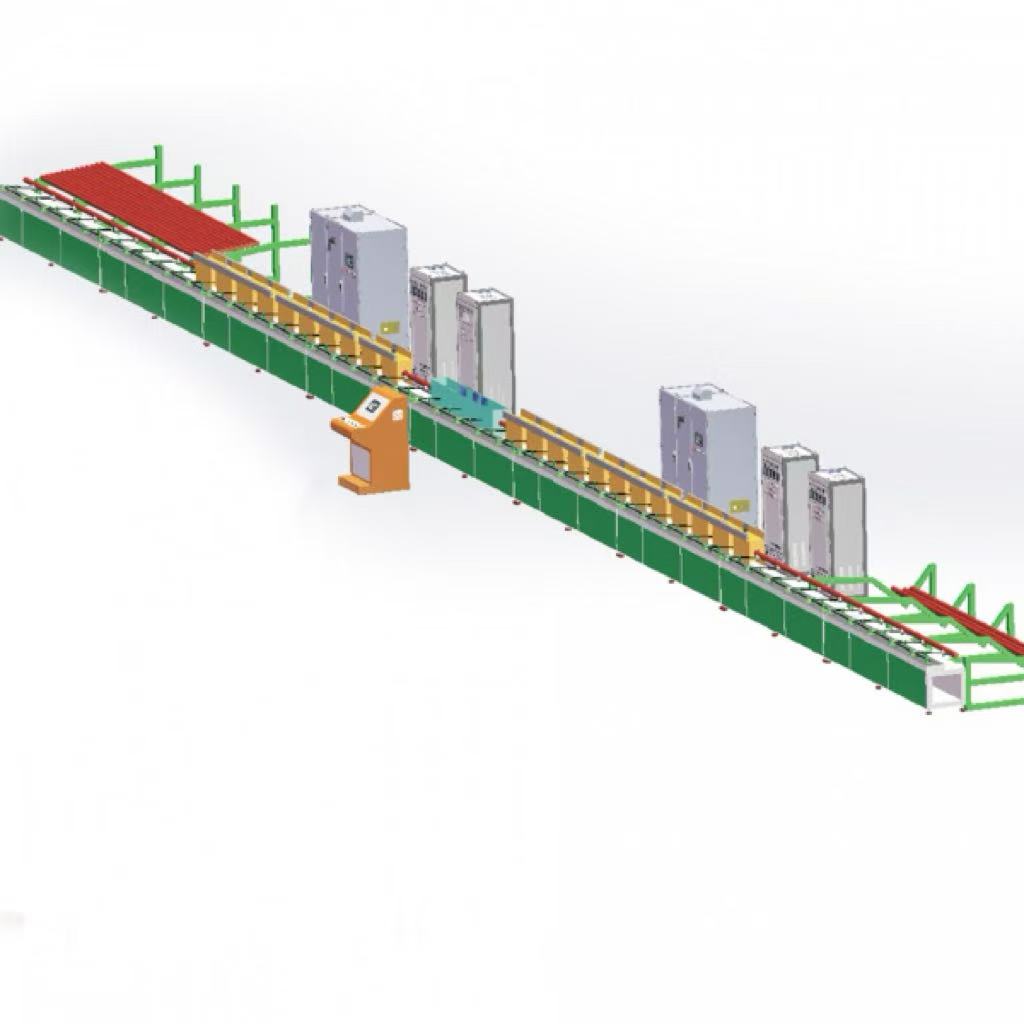

Quenching and Tempering System
Quenching and Tempering System View This Product

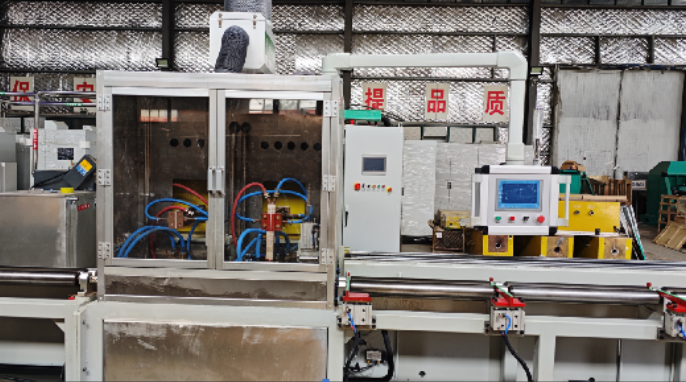

Induction Heat Treating Scanning System
Induction Heat Treating Scanning System View This Product

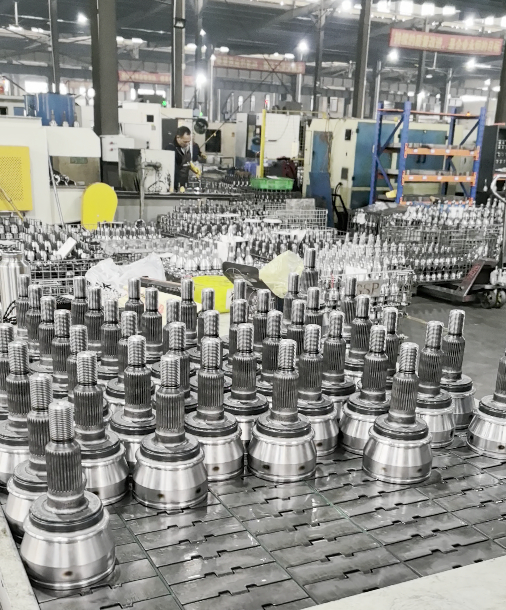

CV Joints automatic induction hardening machine
CV Joints automatic induction hardening machine View This Product

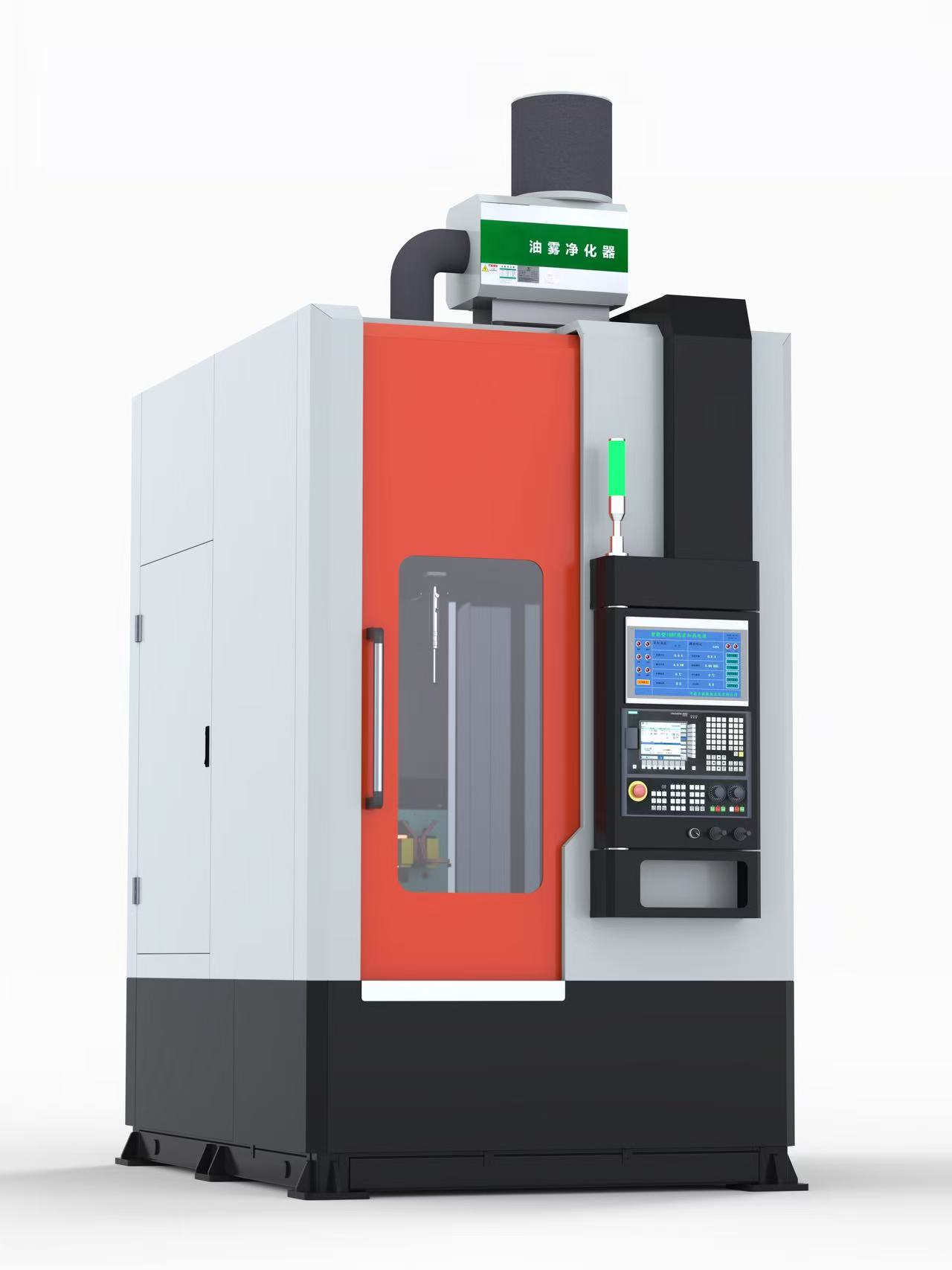

Closed type
Closed type View This Product

CNC vertical quenching machine tool

This series hardening machine tool uses numberic control technology, has continuous, simultaneous, sectionally-continuous and sectionally-silultaneous quenching functions, it is mainly used for induction quenching of shafts, discs, pins and gears, and featured by high quenching precision. hardening machine tool used by connecting with medium frequency, superaudio frequency, high frequency and ultrahigh frequency induction heating machine.


According to the different of workpiece, there are vertical type, horizontal type,closed type, customized type, etc.

1.Standard SK-500/1000/1200/1500

workpiece moving type

For shafts, discs, pins and gears hardening

2.SK-2000/2500/3000/4000

Transformer moving type

Used for heating length more than 1500mm shaft

3.Closed type

More clean work environment.

4.Horizontal hardening machine tool

SK-500/1000/1200/1500/2000/2500/3000/4000.....SK-12000

Used for smooth shaft

5.Customized type

Technical Parameter

Model

SK-500

SK-1000

SK-1200

SK-1500

Max heating length(mm)

500

1000

1200

1500

Max heating diameter(mm)

500

500

500

500

Max holding length(mm)

600

1000

1200

1500

Max weight of workpiece(Kg)

50

80

100

100

Workpiece rotation speed(r/min)

0-300

0-300

0-300

0-300

workpiece moving speed(mm/min)

0-2500

0-2500

0-2500

0-2500

Cooling method

Hydrojet cooling

Hydrojet cooling

Hydrojet cooling

Hydrojet cooling

Input voltage

3P 380V 50Hz

3P 380V 50Hz

3P 380V 50Hz

3P 380V 50Hz

Motor power

3KW

3KW

3KW

3KW

Dimension LxWxH (mm)

1600 x800 x2000

1600 x800 x2400

1900 x900 x2900

1900 x900 x3200

weight(Kg)

800

900

1100

1200


Model

SK-2000

SK-2500

SK-3000

SK-4000

Max heating length(mm)

2000

2500

3000

4000

Max heating diameter(mm)

500

500

500

500

Max holding length(mm)

2000

2500

3000

4000

Max weight of workpiece(Kg)

150

150

150

150

workpiece rotation speed(r/min)

0-300

0-300

0-300

0-300

workpiece moving speed(mm/min)

0-2500

0-2500

0-2500

0-2500

Cooling method

Hydrojet cooling

Hydrojet cooling

Hydrojet cooling

Hydrojet cooling

Input voltage

3P 380V 50Hz

3P 380V 50Hz

3P 380V 50Hz

3P 380V 50Hz

Motor power

4.5KW

4.5KW

4.5KW

4.5KW

Dimension LxWxH (mm)

1900 x900 x2400

1900 x900 x2900

1900 x900 x3400

1900 x900 x4300

weight(Kg)

1200

1300

1400

1500

CNC hardening machine tool feature:

1.CNC system:The high-frequency quenching machine CNC system can compile and store a variety of quenching process programs according to different workpiece requirements.

2.HMI: programming type and human machine interface displays in English and Chinese.

3.Control adjust: it can control the heating power to start, stop, parts heating and cooling time, rotation speed and movement speed.

4.Lathe: adopt welded structure with good rust-proof functions.

5.Top adjustment parts: adopt electric adjustment, to realize clamping of different length work piece.

6.Work table system: adopt ball screw and servo motor to drive, driving light, high guide precision and accurate positioning.

7.Main shaft rotation system: adopt variable frequency regulating to realize parts rotation speed continuous adjusted.

8.Electric control part: the machine tool has power-loosing protection function, has high safety and reliability.

9.Frame: made by thick steel plates, with window and sliding doors, prevent water splash, easy to load parts and monitor hardening process.
